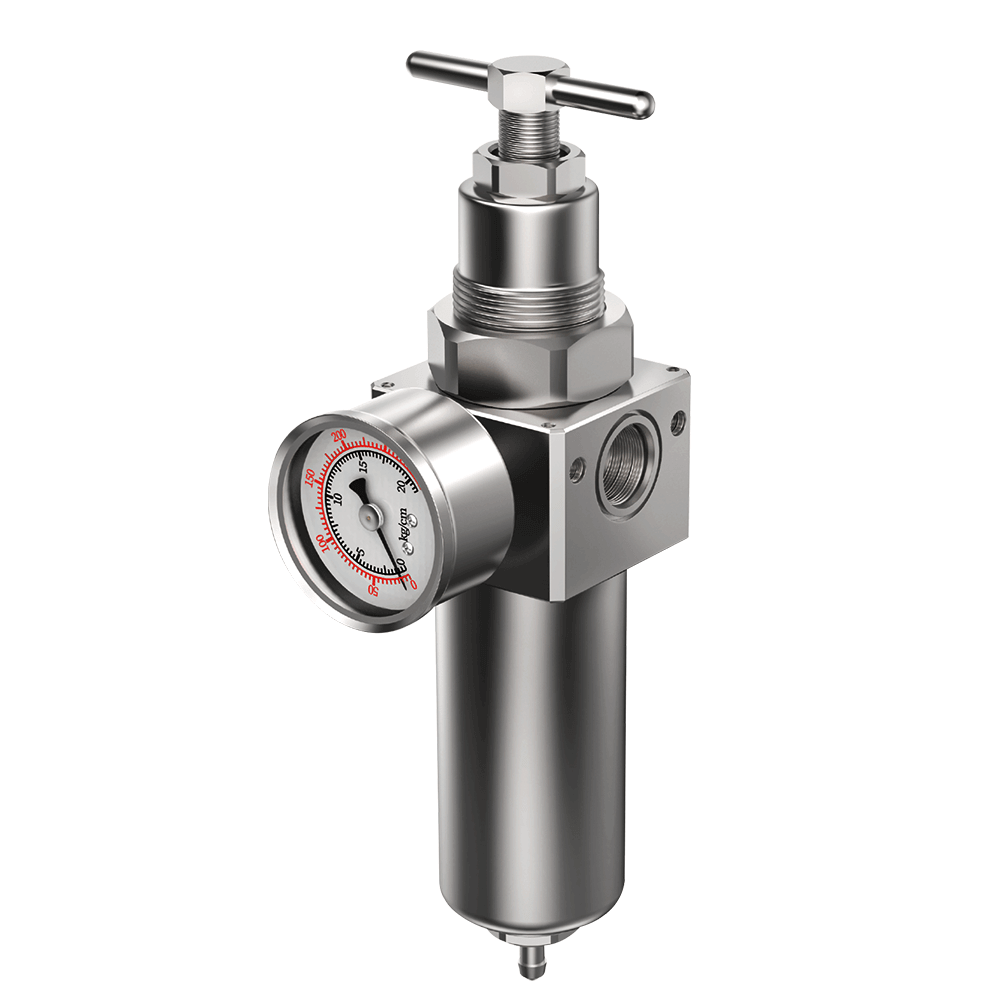

Pneumaster PNEU Series–Regulator Valve

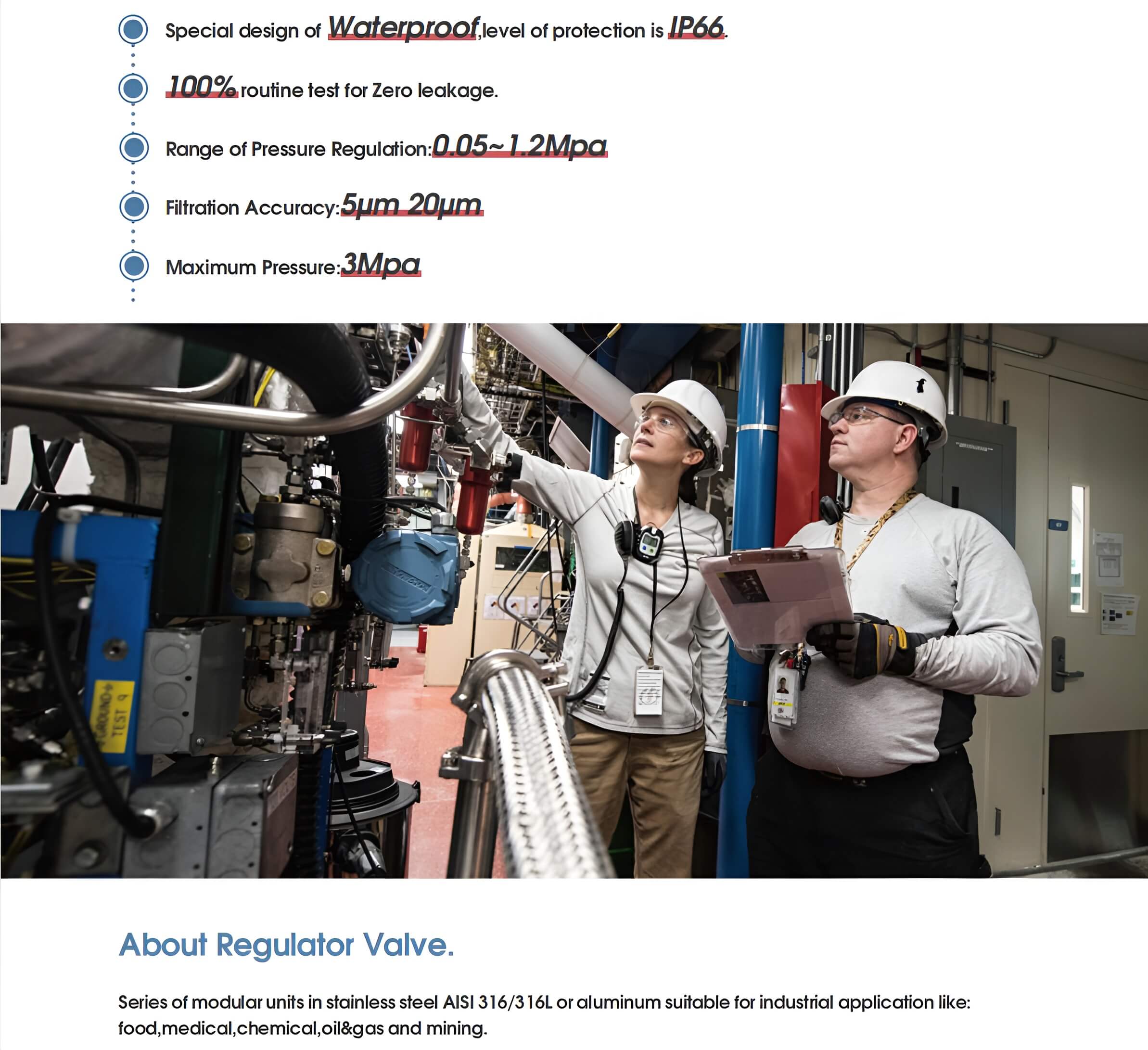

Special design of Waterproof, level of protection is lP66.
100% routine test for Zero leakage.

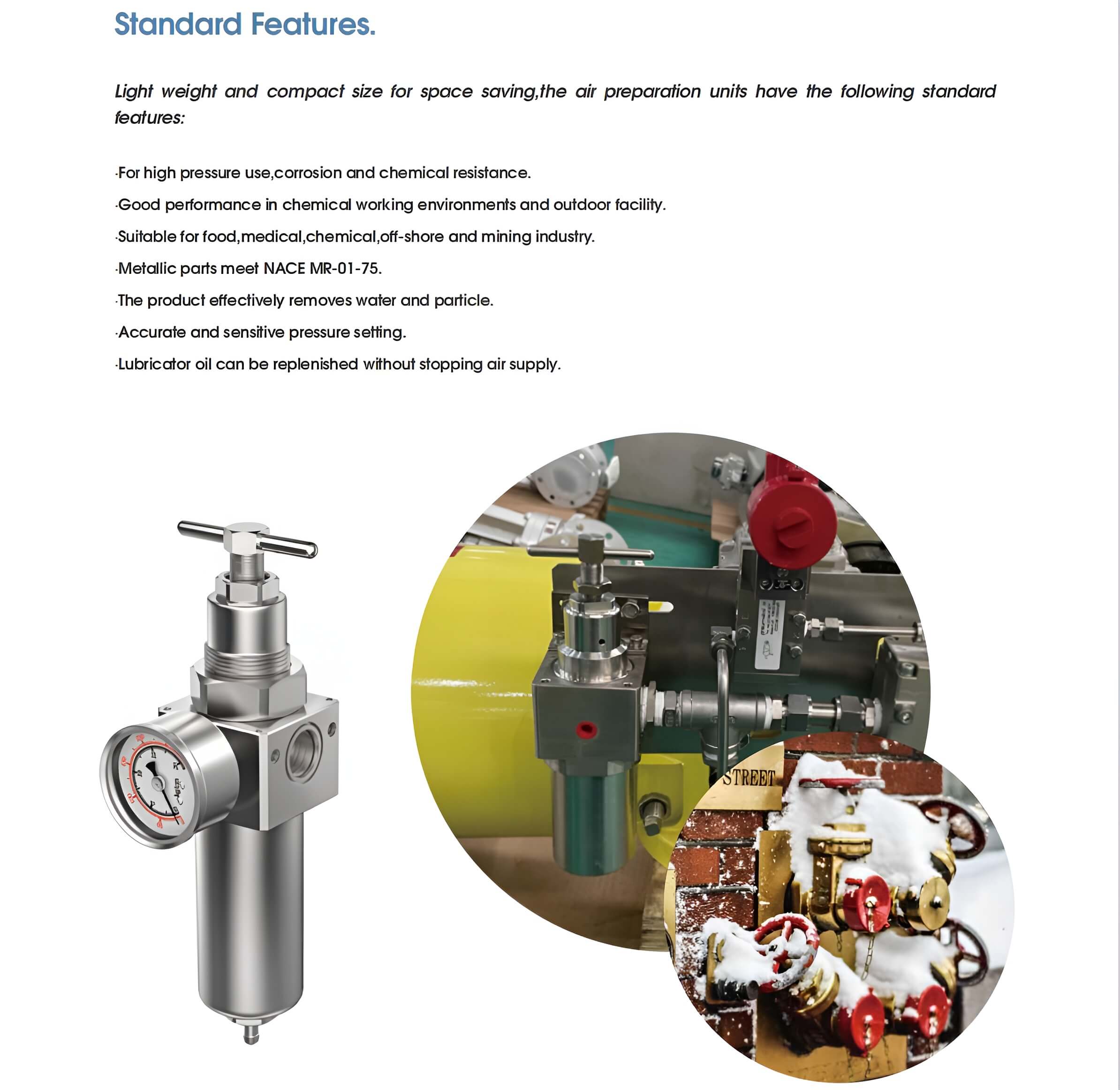

Metallic parts meet NACE MR-01-75.
The product effectively removes water and particle.
Accurate and sensitive pressure setting.
Lubricator oil can be replenished without stopping air supply.

10+ Years Research & Produce Experience

Pneumaster Certificates

Item

PNEU14FR PNEU38FR PNEU12FR PNEU34FR PNEU10FR

Over Pressure Exhaust

Reliving Ø4 Reliving Ø4 Reliving Ø4 Reliving Ø4 Reliving Ø4

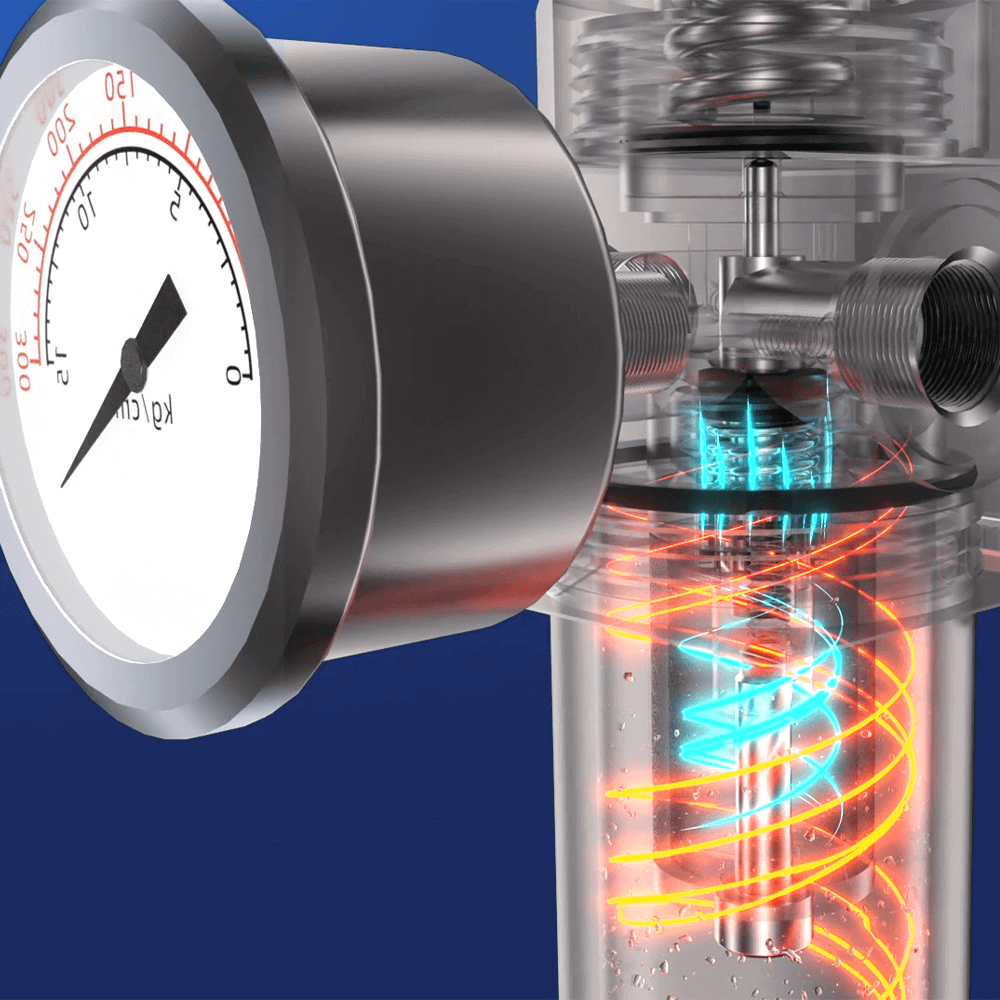

Pressure Regulator

Piston Piston Piston Piston Piston

Max. Flow Rate (I/min)

1850 l/min 3800 l/min 3800 l/min 8900 l/min 8900 l/min

Temperature Range

-30℃ to 100℃ (NT) -40℃ to 80℃ (LT) 30℃ to 150℃ (HT) -56℃ to 80℃ (ST)

Suggested Oil

With ISO VG 32 viscosity according to normative lSO 3448

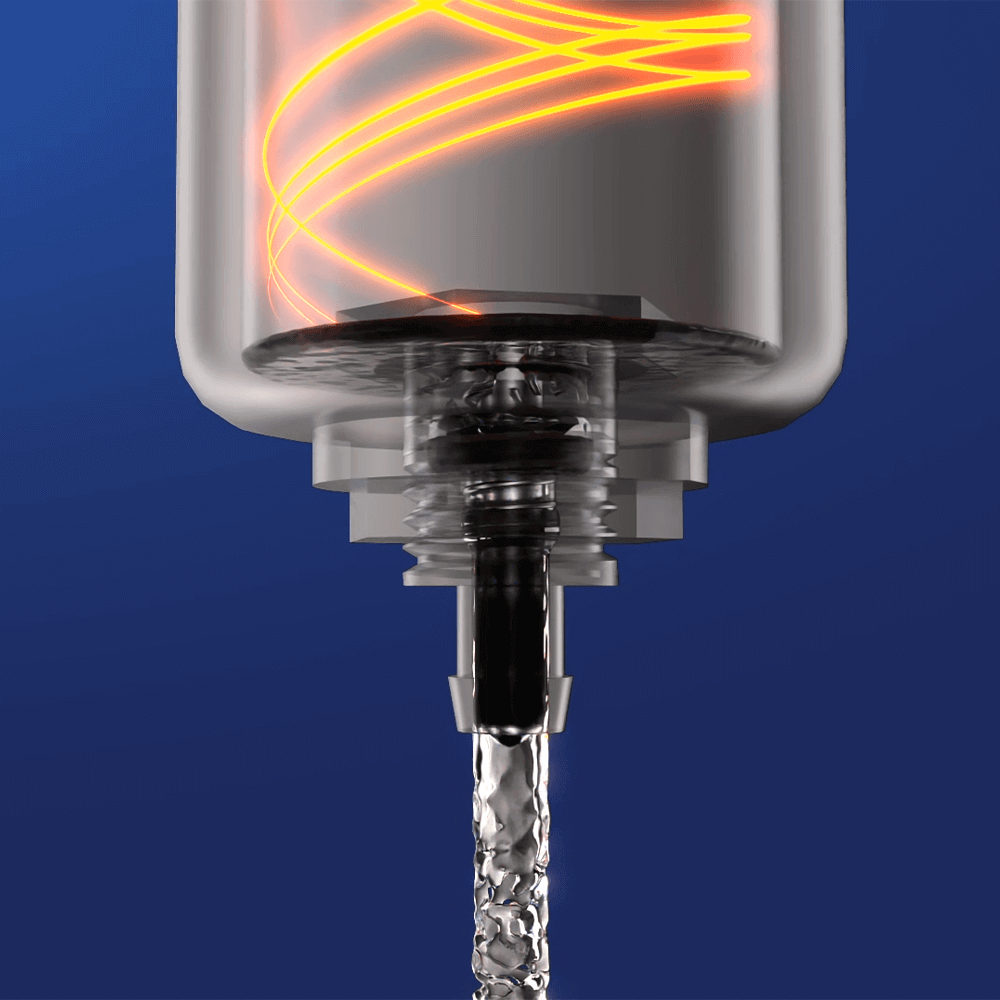

Condense Drain

Semi–automatic (standard) – On request manual/automatic

Cup Capacity

105cm3

1 10cm3

200cm3
