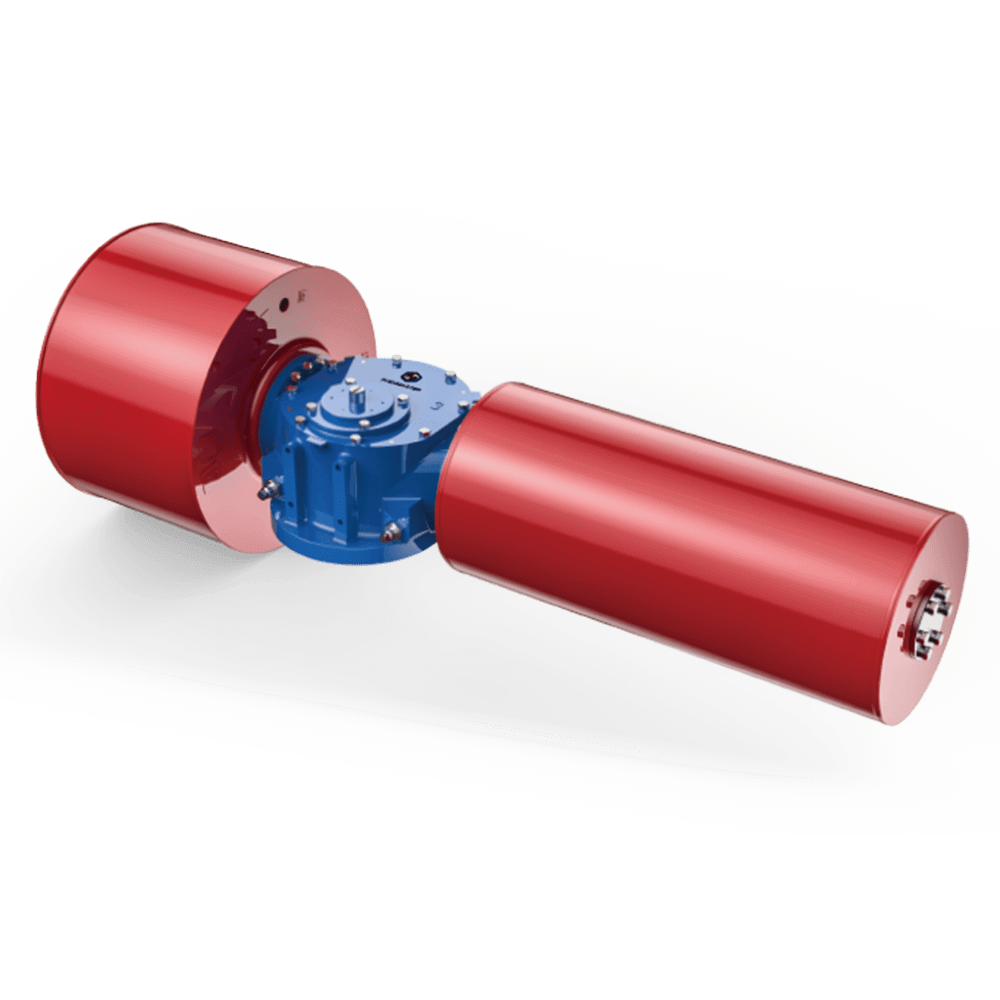

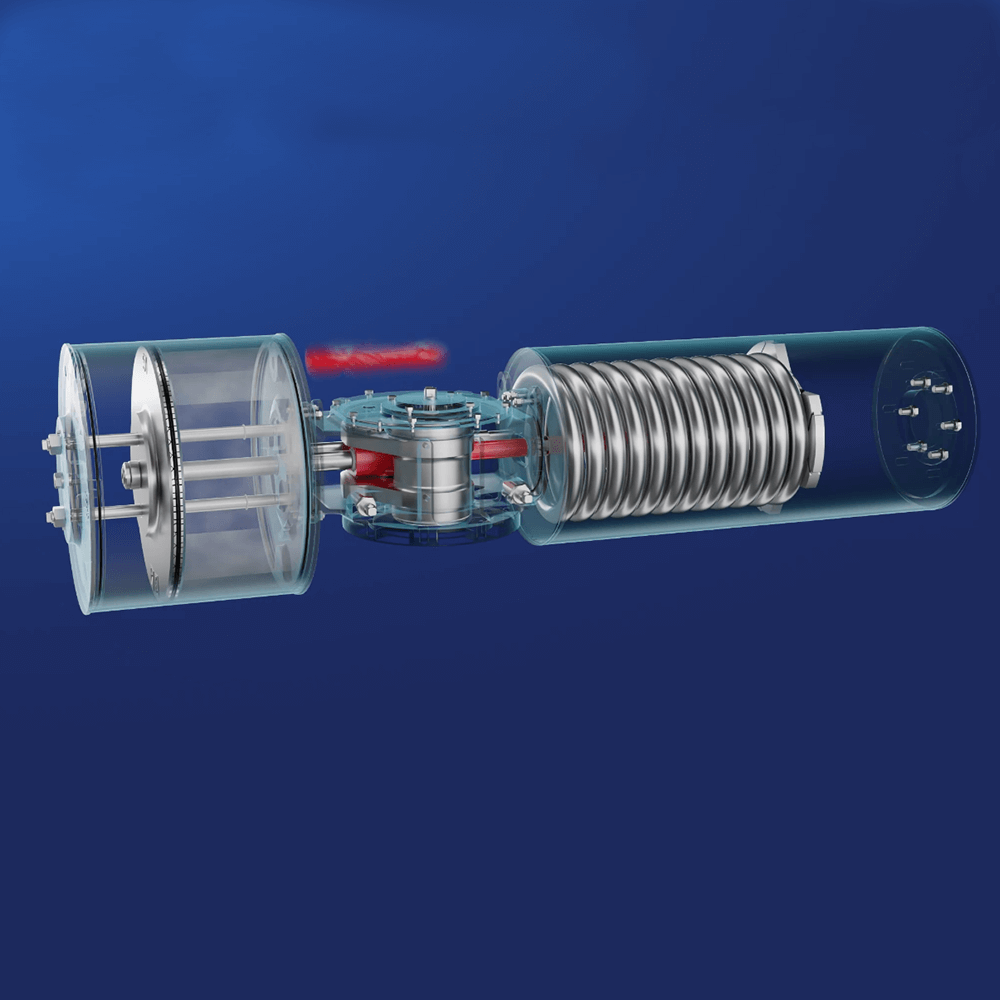

Pneumaster N-Series–Scotch Yoke

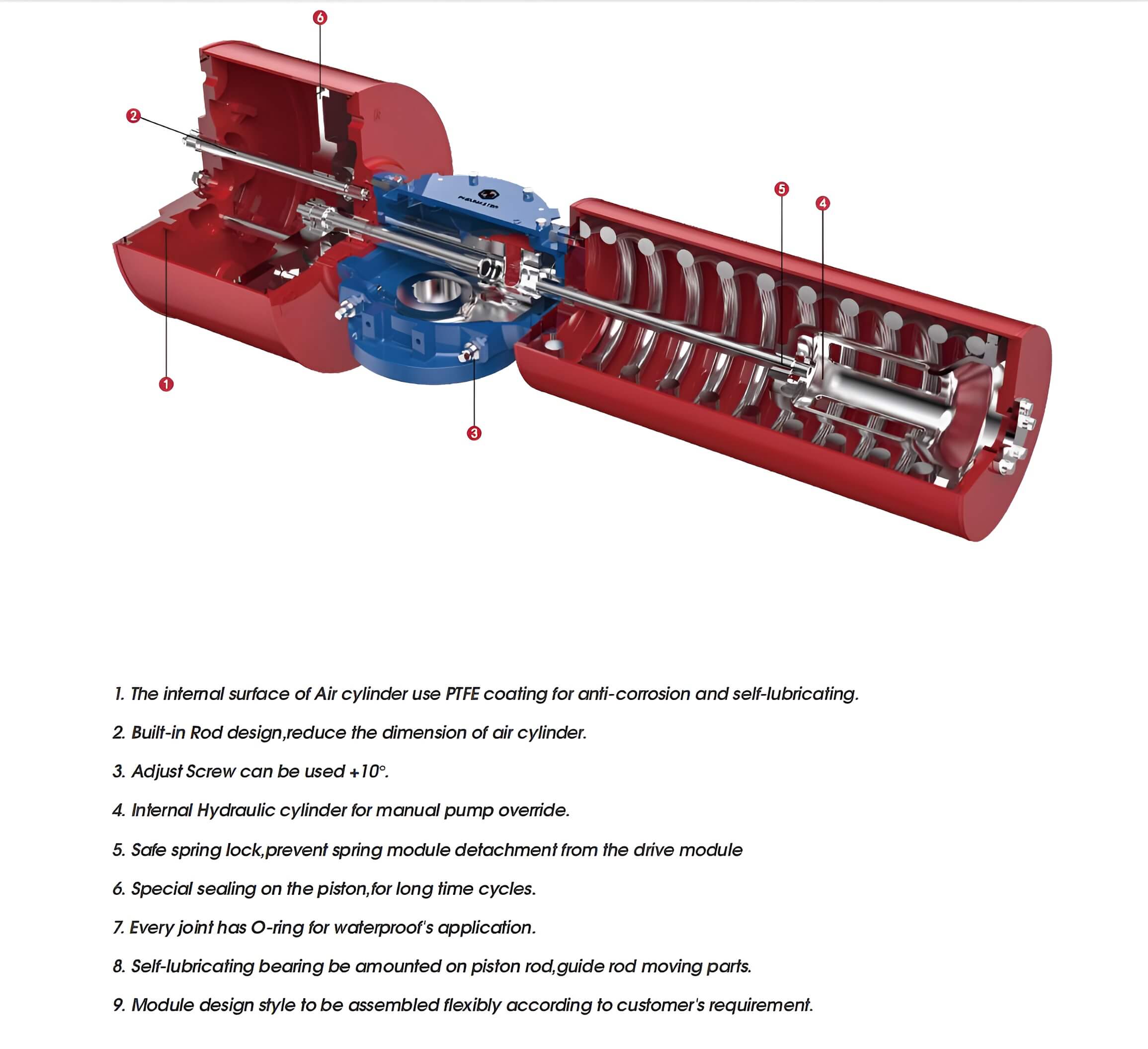

The internal surface of Air cylinder use PTFE coating for anti-corrosion and self-lubricating.
Built-in Rod design,reduce the dimension of air cylinder.
Adjust Screw can be used +10°.
Internal Hydraulic cylinder for manual pump override.
Safe spring lock,prevent spring module detachment from the drive module
Special sealing on the piston,for long time cycles.
Every joint has O-ring for waterproof’s application.
Self-Iubricating bearing be amounted on piston rod,guide rod moving parts.
Module design style to be assembled flexibly according to customer’s requirement.
