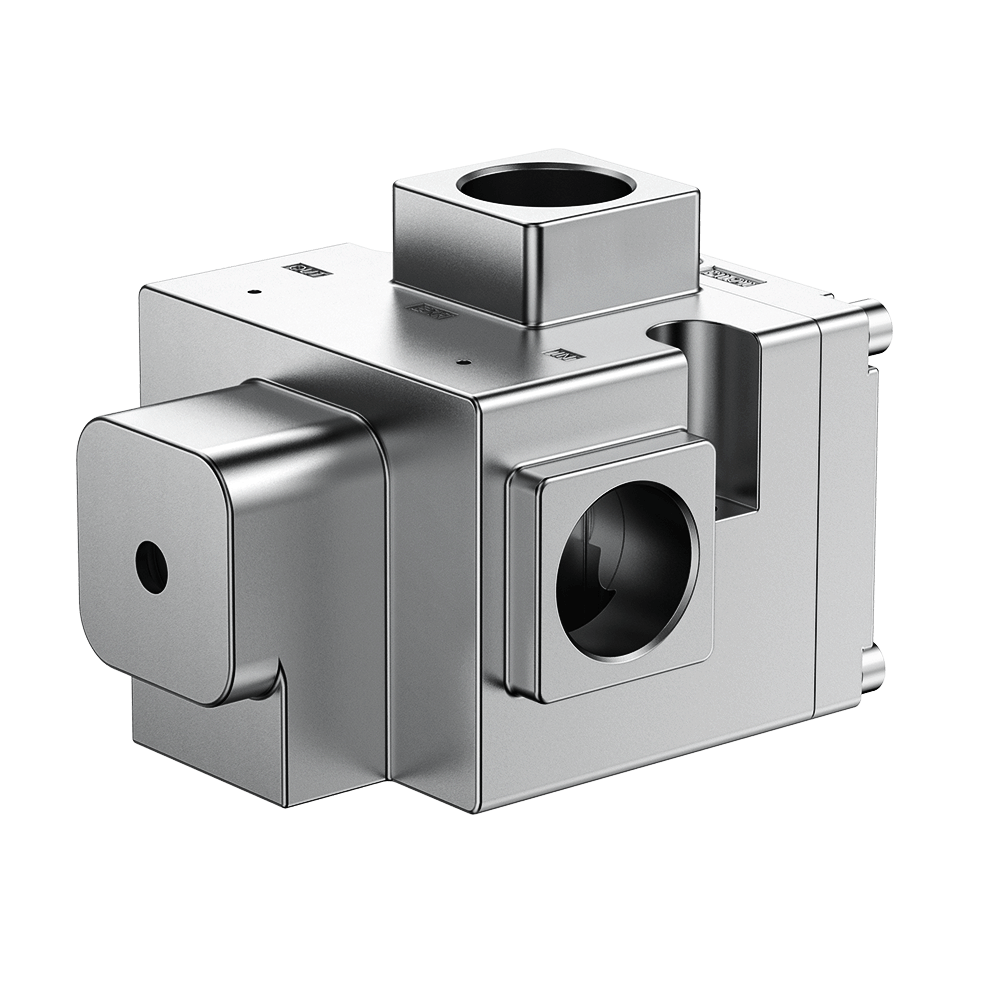

Pneumaster AC-Series

10+ Years Research & Produce Experience

*Pressure Range:*	*Vacuum to* *150 PSI(10 bar)*
*Air* *Signal Pressure:*	*Single operator and* *3 positions:25 to* *150 PSl ≥ main valve pressure;**Double operator:10 to* *150 PSl*
*Lubrication:*	*Not* *required,if* *used* *select* *a medium aniline point lubricant(between* *180°F* *to 210°F)*
*Filtration:*	*40µ*
*Temperature Range:*	*NT:-**40℃* *to 80°C;ST:-**55℃* *to 80°C*
*Flow(at 6 bar,△P=1**bar*)	*3/8″**:(2.6 Cv),1/2″:(3.0 Cv), 3/4″:(11.5 Cv),1“:(13.4 Cv),1 1/4″:(15.4 Cv),1 1/2″:(15.9 C*v)
