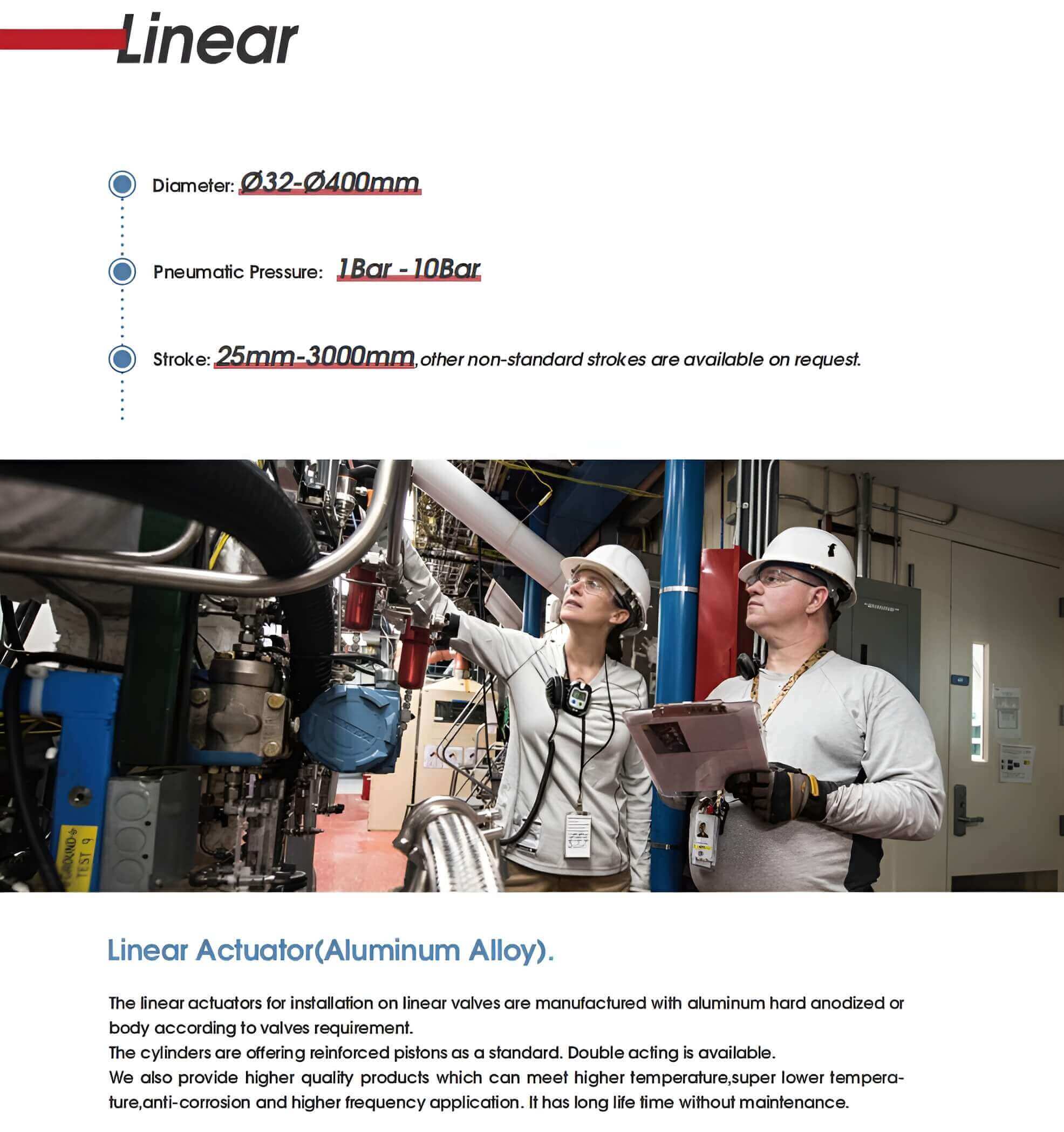

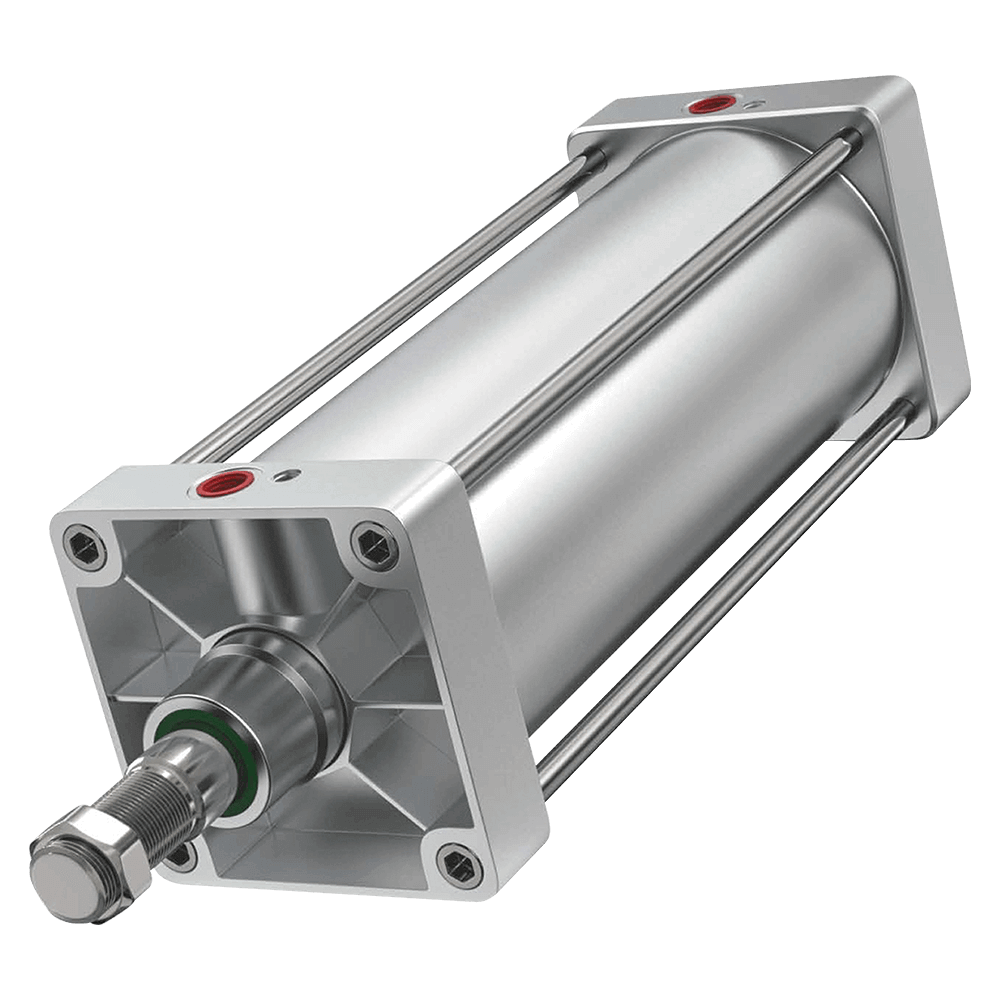

Pneumaster SL-Series–Linear Actuator(Aluminum Alloy)

  • Uses purified compressed air as its working power
  • Maximum temperature up to 150° C, minimum temperature up to -40° C
  • Diameter: 232-400mm.
  • Pneumatic Pressure: 1Bar-10Bar
  • Stroke: 23mm-3000mm.oiner non-standard strokes are available on request.
  • Manufactured with aluminum hard anodized or body according to valves requirement
  • The cylinders are offering reinforced pistons as a standard.
  • Can meet higher temperature,super lower temperature,anti-corrosion and higher frequency application.
  • It has long life time without maintenance.
Send inquiry

10+ Years Research & Produce Experience

Pneumaster Certificates

Air Source Pressure P(MPa)


D(MM)



d(MM)

 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Press Thrust P1（N）         Press Thrust P2（N）


32



12

 P1

P2

 78

67

 156

134

 234

201

 312

268

 390

335

 468

402

 546

469

 624

536

 701

603

 780

670


40



16

 P1

P2

 122

103

 243

205

 366

307

 487

409

 609

512

 731

614

 853

717

 975

819

 1096

922

 1218

1023


50



20

 P1

P2

 190

160

 381

320

 571

480

 761

639

 952

799

 1143

959

 1333

1119

 1523

1279

 1713

1439

 1904

1600


63



20

 P1

P2

 303

272

 604

543

 907

815

 1209

1087

 1511

1359

 1813

1631

 2116

1902

 2418

2174

 2720

2445

 3023

2718


80



25

 P1

P2

 487

439

 975

880

 1462

1319

 1950

1759

 2437

2199

 2924

2638

 3411

3078

 3898

3518

 4386

3958

 4873

4397


100



25

 P1

P2

 761

714

 1523

1428

 2284

2142

 3046

2856

 3807

3570

 4569

4284

 5330

4997

 6092

5711

 6853

6424

 7615

7138


125



32

 P1

P2

 1190

1112

 2379

2223

 3570

3336

 4759

4447

 5949

5559

 7138

6671

 8328

7782

 9519

8894

 10708

10007

 11898

11118


（140）



35

 P1

P2

 1493

1399

 2985

2798

 4478

4197

 5969

5597

 7462

6996

 8955

8395

 10447

9794

 11940

11194

 13432

12593

 14924

13991


160



40

 P1

P2

 1950

1827

 3898

3655

 5848

5482

 7797

7310

 9747

9137

 11696

10965

 13645

12792

 15595

14620

 17543

16447

 19493

18275
（180）

45

 P1

P2

 2467

2312

 4934

4626

 7401

6938

 9869

9252

 12335

11564

 14802

13878

 17270

16190

 19737

18504

 22204

20816

 24671

23129


200



40

 P1

P2

 3046

2924

 6092

5848

 9137

8772

 12183

11696

 15229

14620

 18275

17543

 21321

20468

 24366

23392

 27412

26316

 30458

29240


250



50

 P1

P2

 4759

4569

 9519

9137

 14277

13706

 19036

18275

 23795

22844

 28555

27412

 33314

31981

 38073

36550

 42831

41118

 47591

45687


300



70

 P1

P2

 6853

6480

 13706

12960

 20559

19440

 27412

25919

 34265

32400

 41118

38880

 47971

45359

 54824

51840

 61677

58319

 68531

64800


320



63

 P1

P2

 7797

7495

 15595

14990

 23392

22486

 31189

29980

 38986

37475

 46783

44970

 54581

52465

 62378

59961

 70176

67456

 77972

74950


400



80

 P1

P2

 12183

11696

 24366

23392

 36550

35088

 48733

46783

 60916

58479

 73099

70176

 85282

81871

 97466

93567

 109649

105262

 121832

116959
