Pneumaster B-Series--Rack & Pinion 1

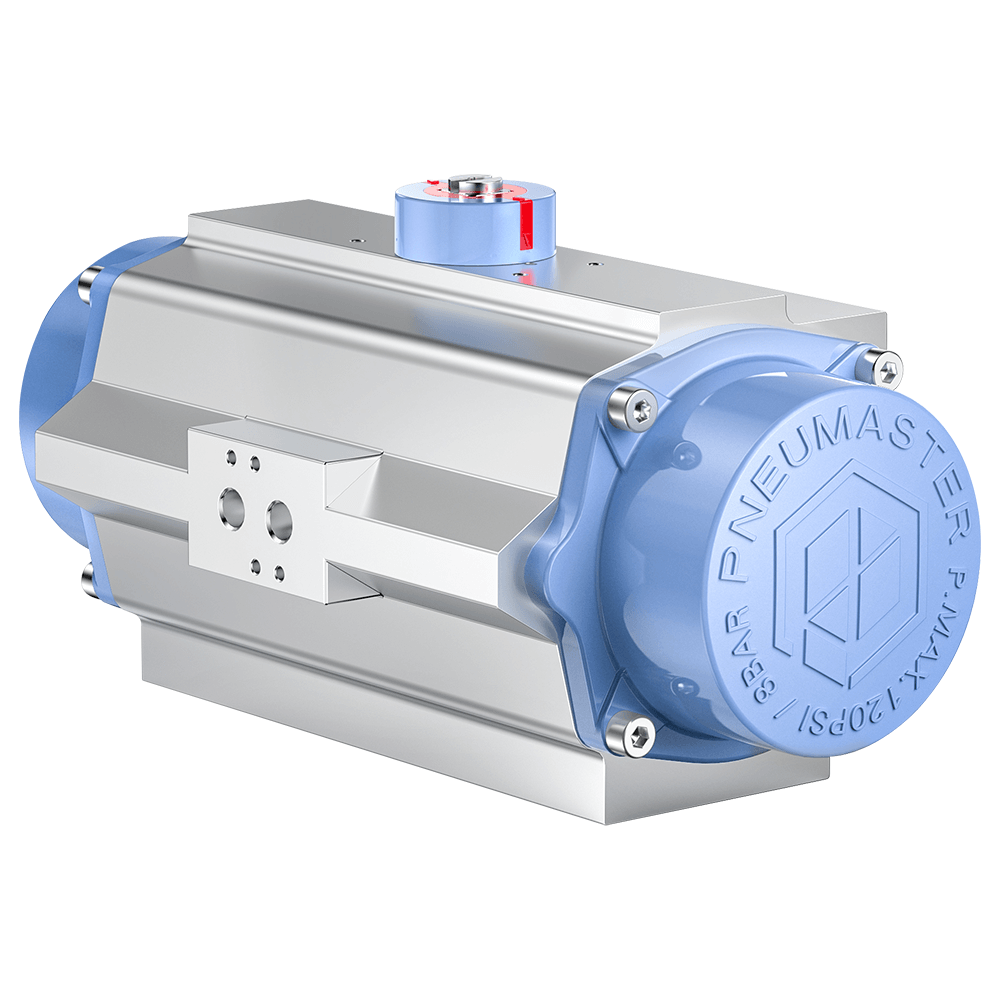

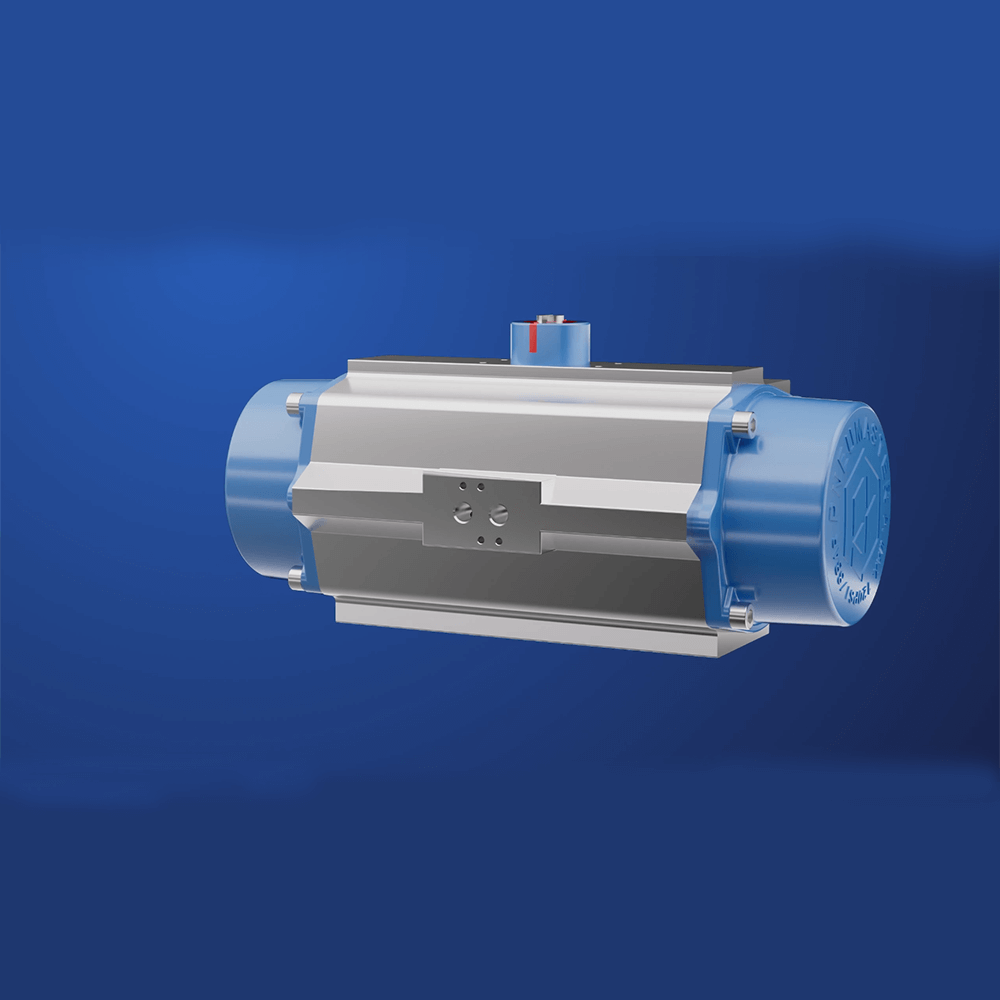

Pneumaster B-Series–Rack & Pinion

the surface is treated with hard anodized, which improves the strength of the shell and anti-corrosion effect

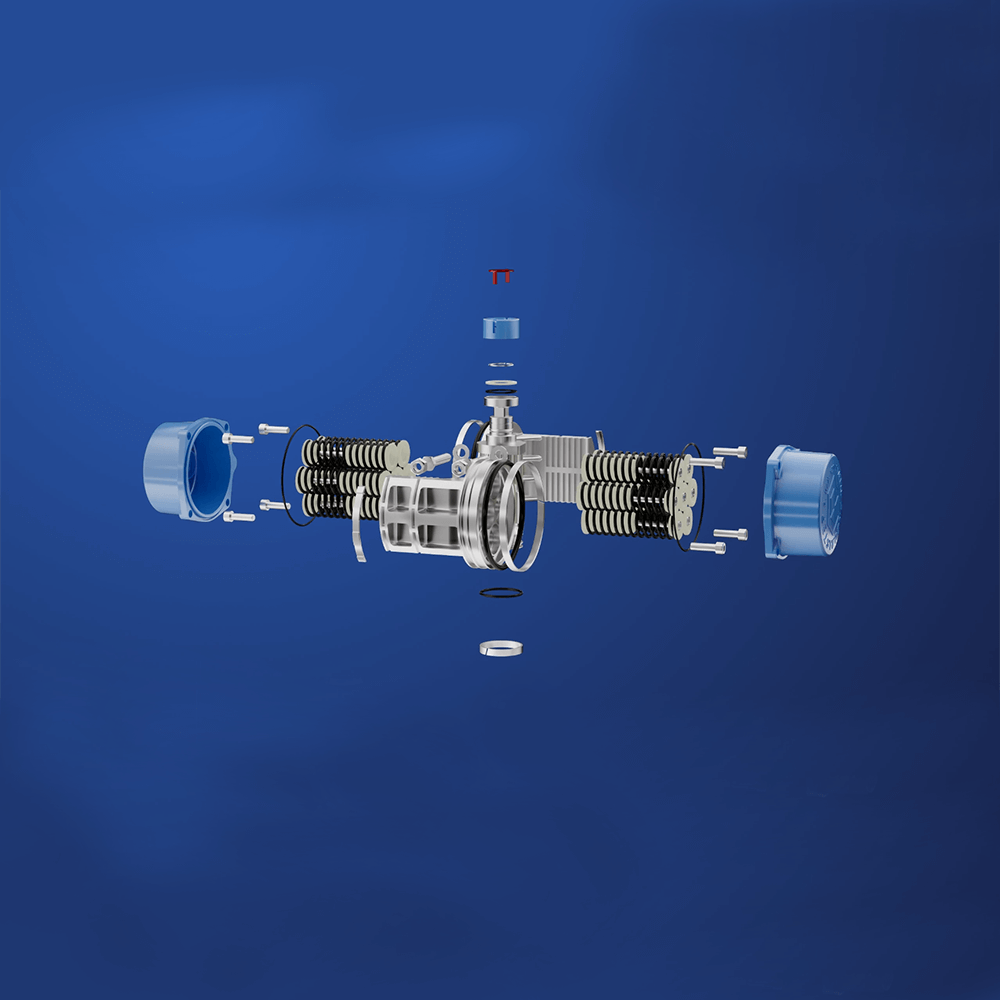

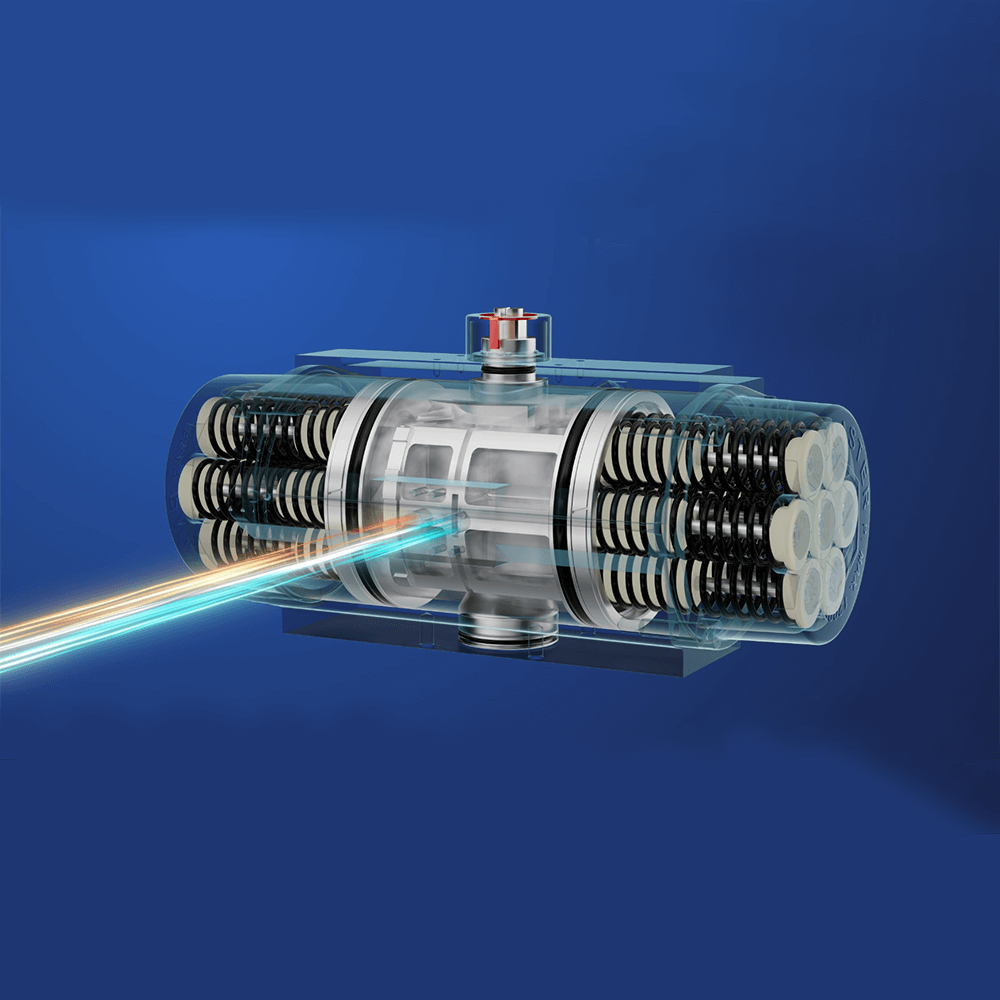

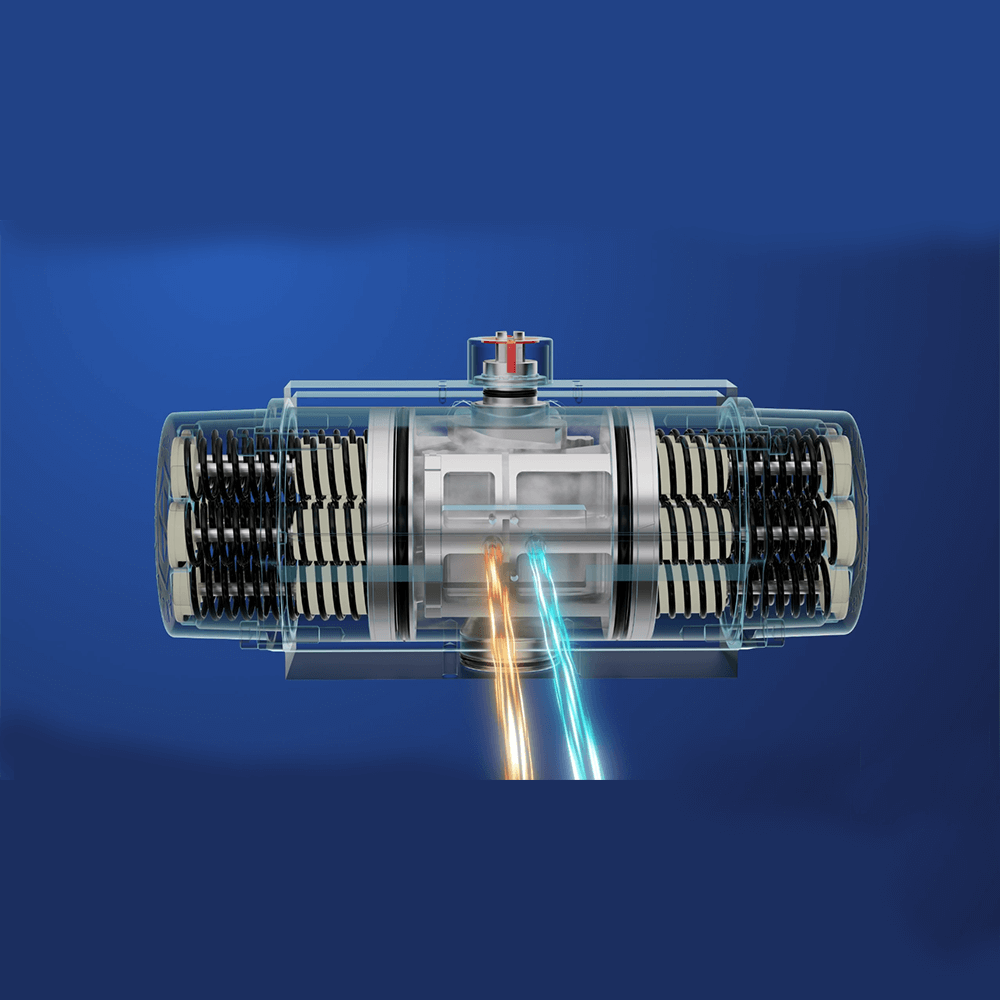

preload spring, the cylinder output torque is more stable and safer
lt has long life time without maintenance. tested under TUV certification and have a life of more than 1 million cycles without load.

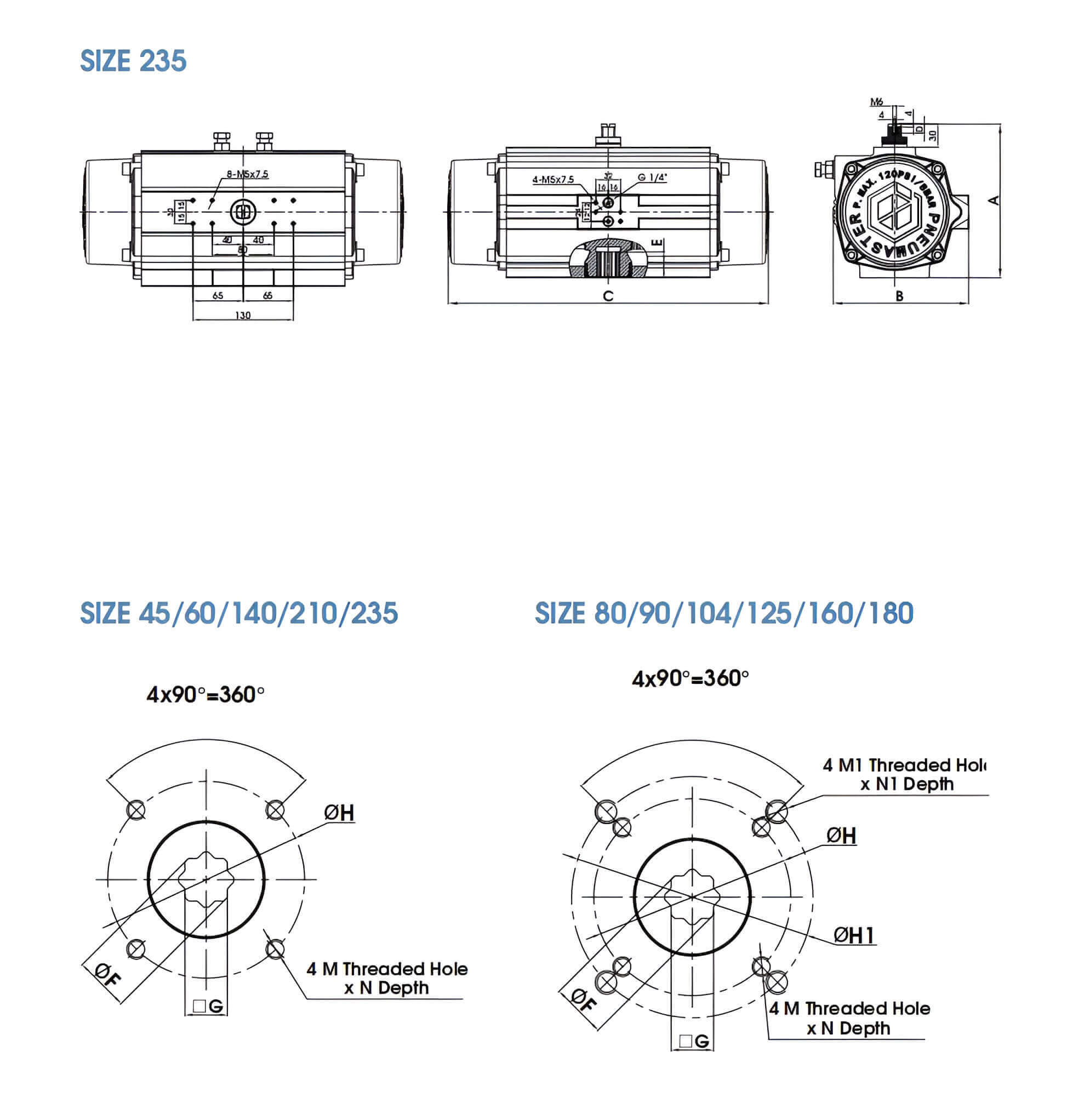

the flange is the international general ISO5211 standard, easy to link
The switching angle is 90 degrees with a plus or minus 5 degree adjustment screw.

10+ Years Research & Produce Experience

OEM & ODM, Quick Supply

Pneumaster Certificates

SIZE	3bar	3.5bar 4bar	4.5bar	5bar 5.5bar		6bar	6.5bar	7bar	8bar	10bar
SIZE	0° 90°	0° 90° 0° 90°	0° 90°	0° 90° 0° 90°		0° 90°	0° 90°	0° 90°	0° 90°	0° 90°
45	9	11 13	14	16	17	19	21	22	25	–
60	20	23 26	30	33	36	40	43	46	52	–
80	37	44 50	56	62	68	75	81	87	100	–
90	57	67 76	86	95	105	115	124	134	152	–
104	85	99 114	127	142	156	170	184	199	227	–
125	141	165 188	212	235	259	282	306	329	376	–
140	211	245 280	315	350	385	420	455	490	560	–
160	348	406 465	522	580	638	697	755	812	928	–
180	503	588 671	756	839	923	1007	1091	1175	1343	–
210	686	799 914	1028	1143	1256	1371	1485	1600	1828	–
235 DA S	1053 ERIES	1229 1405 TORQUE O	1580 UTPUT	1756 in ft l	1931 b	2107	2282	2458	2809	–
SIZE	43.5psi	50.8psi 58psi	65.3psi	72.5psi	80psi	87psi	94.3psi	102psi	1 16psi	145psi
SIZE	0° 90°	0° 90° 0° 90°	0° 90°	0° 90°	0° 90°	0° 90°	0° 90°	0° 90°	0° 90°	0° 90°
45	7	8 9	10	11	12	14	15	16	18	–
60	14	17 19	21	24	26	29	31	33	38	–
80	27	32 36	41	45	50	55	59	64	73	–
90	42	49 56	63	70	77	84	91	98	112	–
104	63	72 83	93	104	115	125	135	146	166	–
125	103	121 138	156	172	191	207	225	242	277	–
140	155	180 206	232	258	284	309	335	360	412	–
160	257	299 342	385	427	470	513	555	598	683	–
180	371	433 494	556	618	680	724	804	866	989	–
210	505	588 673	757	842	925	1009	1094	1178	1347	–
235	777	906 1036	1165	1295	1424	1553	1683	1812	2071	–
